PA/PE
CaseX DSI® PA/PE
For the installation of all types of pipes
when carrier pipes run through a casing pipe
CaseX DSI ®
Casing Spacer
Type selection
CaseX DSI® PA/PE
Fields of application
For pipe pull-in and pipe storage; also suitable for particularly small carrier pipes
Material
Polypropylene; bolts/nuts galvanized, stainless steel on request
Properties
Easy installation by means of two half-shells and 4 bolts; max. static load per ring up to 250 kg; skid heights 11 to 110 mm; cathodic pipe protection; material temperature range -20 °C to 100 °C; coefficient of sliding friction of polypropylene on steel approx. 0.2
Sizes
Outside pipe diameter from 25 mm to 336 mm
AZ/AC
CaseX DSI® AZ/AC
CaseX DSI® AZ/AC
Fields of application
For pipe pull-in and pipe storage
Material
Polypropylene; bolts/nuts galvanized, stainless steel on request
Properties
The variable number of segments ensures that the spacer can be adapted to the different carrier pipe diameters: max. static load per ring up to 200 kg; skid heights 16 - 110 mm; cathodic pipe protection; material temperature range -20 °C to 100 °C; coefficient of sliding friction of polypropylene on steel approx. 0.2
Sizes
Outside pipe diameter from 98 mm to 385 mm
MA
CaseX DSI® MA
CaseX DSI® MA
Fields of application
For pipe pull-in and pipe storage; suitable for larger medium pipes and higher static loads
Material
Polypropylene; bolts/nuts galvanized, stainless steel on request
Properties
The variable number of segments ensures that the spacer can be adapted to the different carrier pipe diameters: max. static load per ring up to 650 kg; skid heights 25 to 75 mm; cathodic pipe protection; material temperature range -20 °C to 100 °C; coefficient of sliding friction of polypropylene on steel approx. 0.2
Sizes
Outside pipe diameter from 402 mm to 1249 mm
GKO-mk
CaseX DSI® GKO-mk
CaseX DSI® GKO-mk
Fields of application
For pipe pull-in and pipe storage; metal-free solution for small medium pipes and low static load; suitable for cathodic protected pipes
Material
Polypropylene
Properties
Easy installation and adaption to different media pipe diameters by means of clamping connection technology: max. static load per ring up to 250 kg; skid heights 25 to 125 mm; cathodic pipe protection; material temperature range -20 °C to 100 °C; coefficient of sliding friction of polypropylene on steel approx. 0.2; metal-free
Sizes
Outside pipe diameter from 160 mm to 430 mm
GKO-gl/gs
CaseX DSI® GKO-gl/gs
CaseX DSI® GKO-gl/gs
Fields of application
For pipe pull-in and pipe storage; metal-free solution for large medium pipes and extreme static loads; suitable for cathodic protected pipes
Material
Polypropylene
Properties
Easy installation and adaptation to different carrier pipe diameters by means of clamping connection technology: max. static load per ring GKO-gl up to 4.000 kg; GKO-gs up to 14,200 kg; Skid heights 36 to 125 mm; Cathodic pipe protection; Material temperature range -20 °C to 100 °C; Sliding friction coefficient of polypropylene on steel approx. 0.2; Metal-free
Sizes
Outside pipe diameter from 400 mm to 2500 mm
Ranger® II

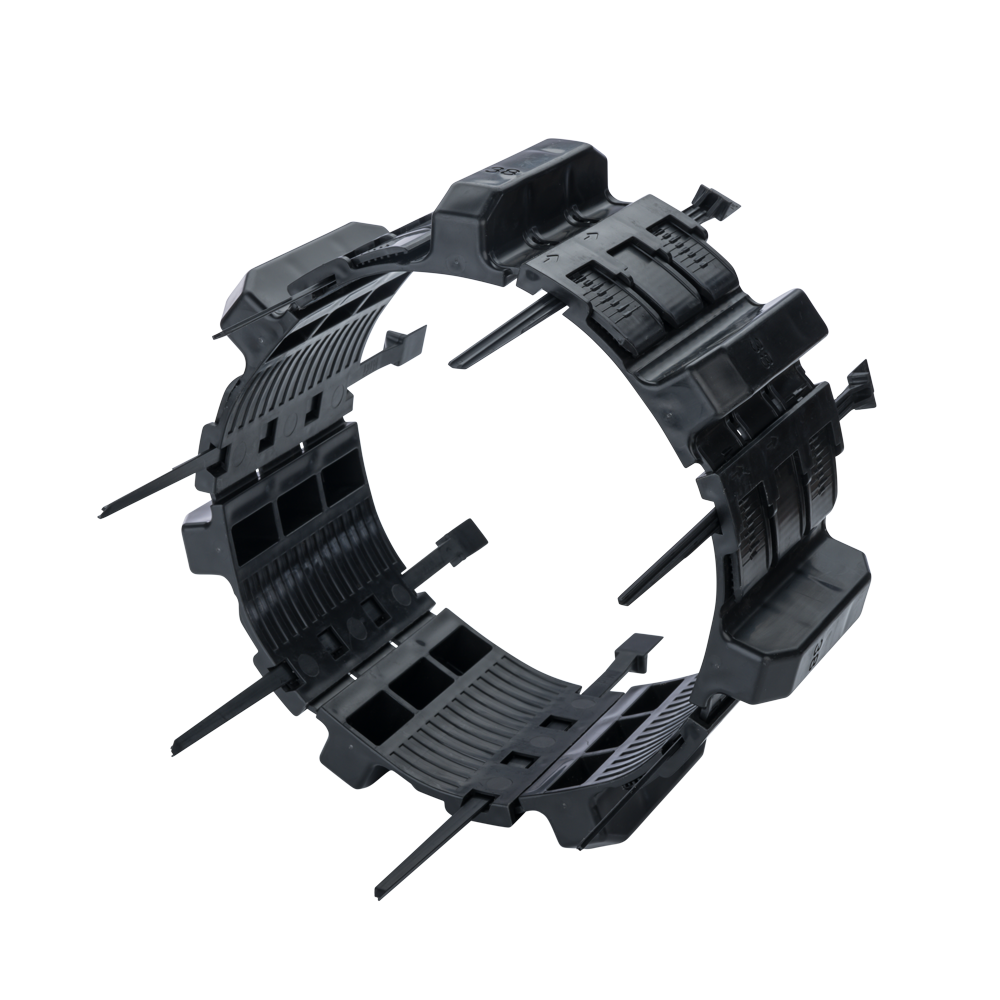

CaseX Ranger® II S / M / L
CaseX Ranger® II S / M / L
Fields of application
For pipe pull-in and pipe storage; metal-free solution, also used for multiple pipe pull-in such as bundling. Suitable for cathodic protected pipes
Material
Polypropylene
Properties
Manufactured with high performance Polyproylene and has an excellent efficiency against compressive load and better resilience to stress in comparison to Polyethylene. It has extremely good sliding property. Following are some of the technical properties: Temperature Range: -30 °C/+100 °C; Dielectric Strength: 32 kV/mm; Compressive Strength: 20,684 kPa; Impact strength: 80 joules/m
Sizes
S, M, L
Outside pipe diameter from 62 mm up to 1290 mm
Download
Product Information
Technical Information
Suitable Accessories
Anti sliding tape
Certificates
To offer our customers the best possible quality and service, we are organized according to DIN EN ISO 9001:2015 and have this continuously checked and certified.
CERTIFICATE ISO 9001:2015
This certification documents our conformity of the quality management system
AEO-CERTIFICATE
Authorized Economic Operator "AEOC (customs simplification)"
CASING SPACERS
Ruhrgas material testing
- DSI® Plastic Spacers GKO 125 gs, 125 gl, 36 gs, 36 gl; TALW component testing
